Type description

System composition

A. Water supply system, the driving device can adopt the following types

I. Diesel engine drive;

II. Motor drive.

B. Foam proportional mixing system can be adopted in the following types

I. pressure type proportional mixing device;

II. Balanced proportional mixing device supporting atmospheric pressure foam liquid storage tank;

III. Mechanical pump type proportional mixing device supporting atmospheric pressure foam liquid storage tank.

C. Injection system

The use of explosion-proof electric control fire foam and water dual-purpose gun, set on the turret above the skid-mounted setting, in different working conditions, can not only achieve high temperature spray cooling treatment work, but also spray foam mixed liquid to achieve fire extinguishing work.

D. Control system

The control system uses the explosion-proof automatic control cabinet to control the start and stop of the fire pump group, proportional mixing device, injection system and other parts.

E. Public systems

Each part of the device is equipped with a whole skid, which is equipped with a protective shed, valves, lighting system, top platform and ladder, fire emergency equipment box, etc. Fire equipment box contains fire hose, foam gun.

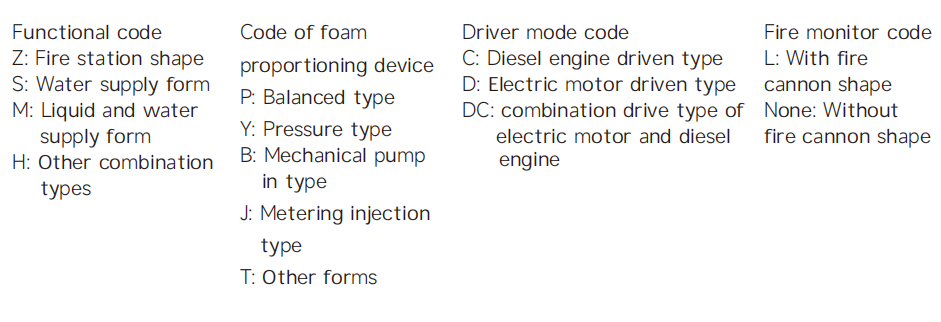

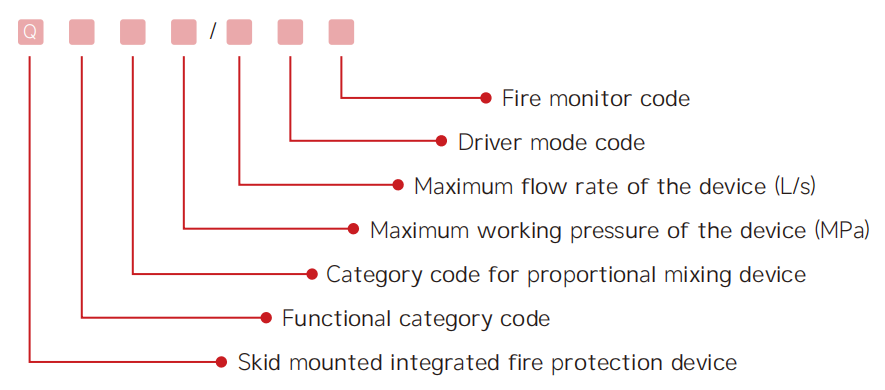

Structure specification

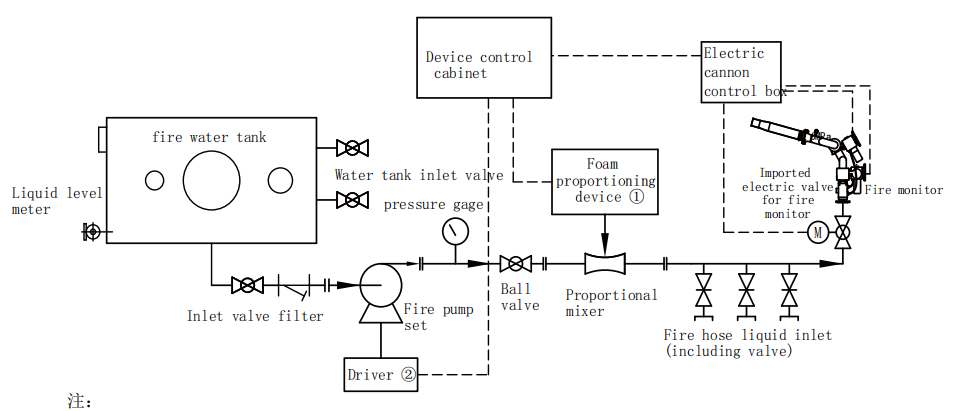

Flow chart of foam fire extinguishing device

Note:

① Foam proportional mixing device can be used pressure proportional mixing device, balanced proportional mixing device, mechanical pump type proportional mixing device, etc.

② The driving machine can be electric motor or diesel engine.

Instructions:

Fire integrated device can be diversified combination, according to user needs to deepen the detailed design.
